Radyal Fanlar

6401110

Radyal Fanlar

Blower Tipi Tekli Blower
Akım (A) 3,3
Hız 4550
Max. Basınç 390
Hava Akış Debisi (m³/h) 550
Hız 1
Hava Akış Oranı %100
Ölçü (inch/mm) 5 (128mm)

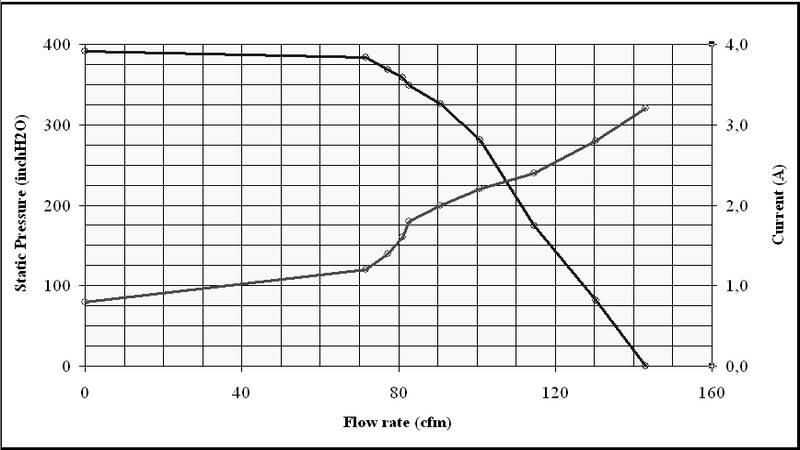

Basınç Hava Akış Debisi Akım
mm H2O m3/h A
0,0 143,0 3,2
2,5 139,4 3,1
5,0 135,7 3,0
10,0 127,9 2,7
15,0 119,6 2,5
20,0 110,8 2,3
25,0 103,4 2,3
30,0 100,4 2,2
35,0 75,3 1,8
39,9 0,0 0,8

Test Voltaj = 13,0 VDC
Basınç : 1 mmH2O = 0,04 inH2O = 9,8 Pa
Hava Akış Debisi : 1 m3/h = 0,59 cfm

PWM Speed Control
EMC (Sertifikalı)
Termal Koruyucu
(LL) Long Life
