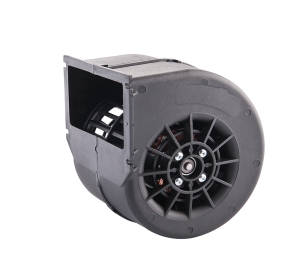

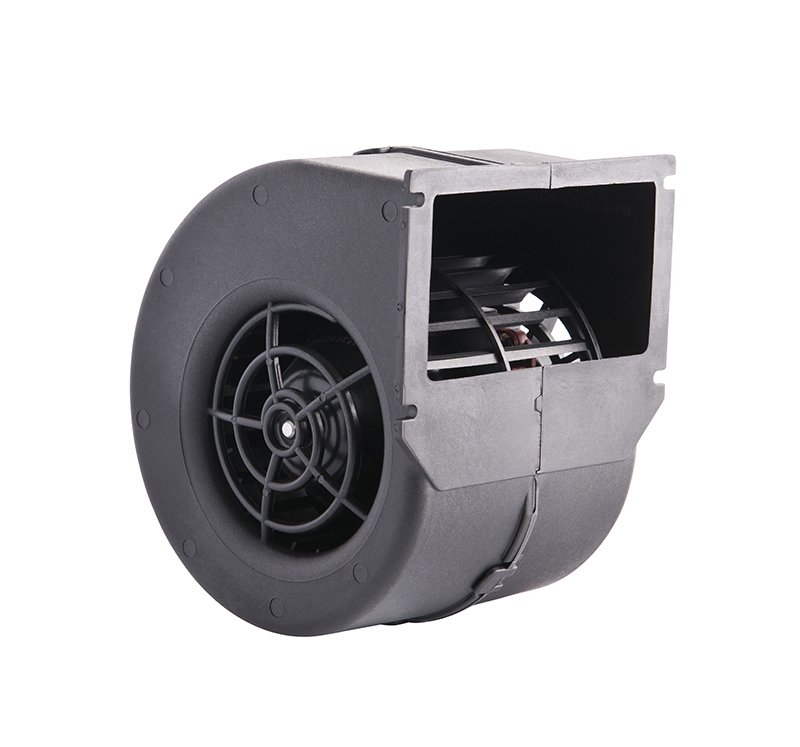

Radyal Fanlar

6401793

Radyal Fanlar

Blower Tipi Tekli Blower
Akım (A) 5,5
Hız 3350
Max. Basınç 770
Hava Akış Debisi (m³/h) 400
Hız 1
Hava Akış Oranı %100
Ölçü (inch/mm) 5,3 (134mm)
Basınç Hava Akış Debisi Akım
mm H2O m3/h A
0,0 386,1 5,7
5,0 370,3 5,5
10,0 354,7 5,4
20,0 324,9 5,2
30,0 292,4 4,9
40,0 250,6 4,6
50,0 202,2 4,1
60,0 145,8 3,7
70,0 70,9 3,1
78,3 0,0 2,6

Test Voltaj = 13,0 VDC
Basınç : 1 mmH2O = 0,04 inH2O = 9,8 Pa
Hava Akış Debisi : 1 m3/h = 0,59 cfm

  • PWM Speed Control
  • EMC (Sertifikalı)
  • Termal Koruyucu
  • (LL) Long Life
