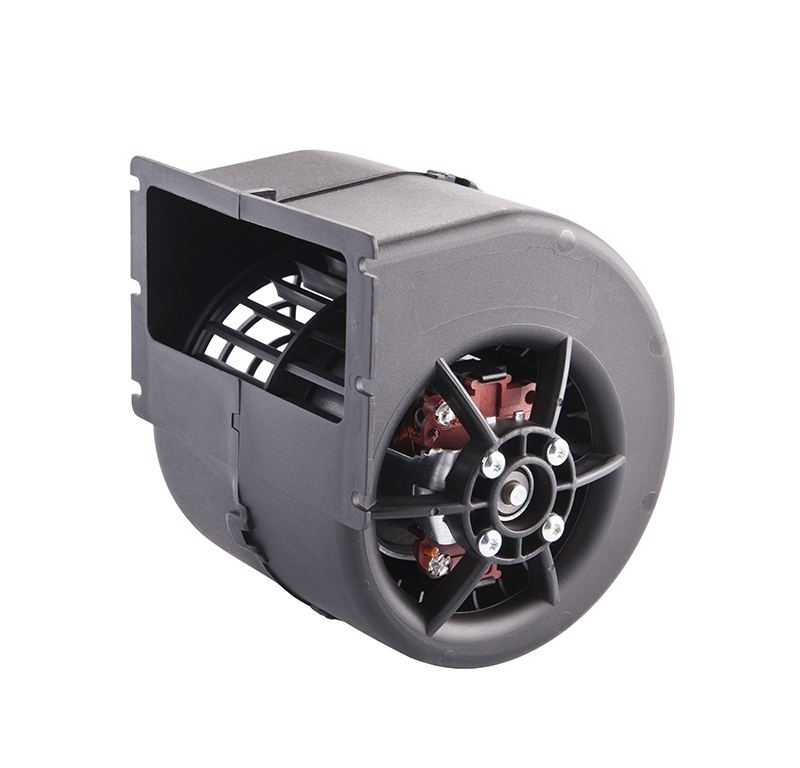

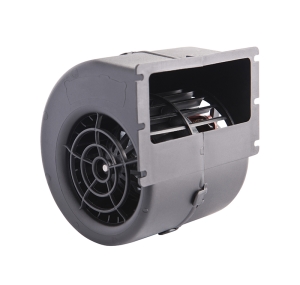

Radyal Fanlar

6401813

Radyal Fanlar

Blower Tipi Tekli Blower
Akım (A) 2,2
Hız 3600
Max. Basınç 390
Hava Akış Debisi (m³/h) 260
Hız 1
Hava Akış Oranı %100

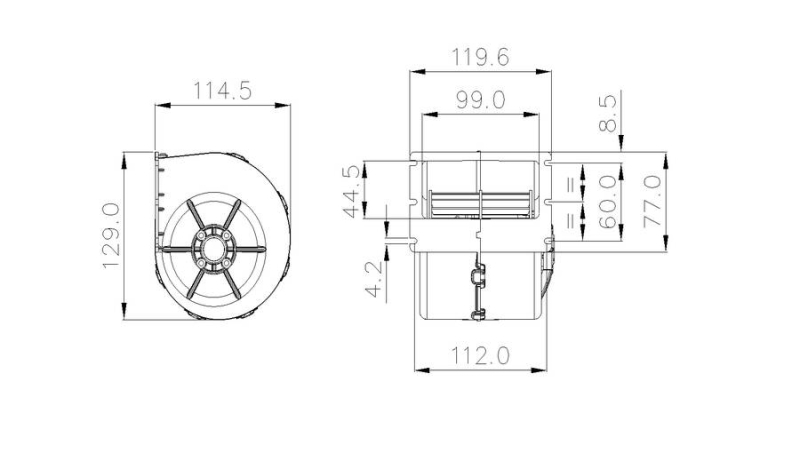

Ölçü (inch/mm) 4,5 (114mm)
Basınç Hava Akış Debisi Akım
mm H2O m3/h A
0,0 260,0 2,3
2,5 253,0 2,2
5,0 246,2 2,2
10,0 227,5 2,1
15,0 198,1 2,0
20,0 172,2 1,9
25,0 141,0 1,7
30,0 102,4 1,5
35,0 51,4 1,3
39,7 0,0 1,1

Test Voltaj = 13,0 VDC
Basınç : 1 mmH2O = 0,04 inH2O = 9,8 Pa
Hava Akış Debisi : 1 m3/h = 0,59 cfm

  • PWM Speed Control
  • EMC (Sertifikalı)
  • Termal Koruyucu
  • (LL) Long Life

BENZER ÜRÜNLER

Parça Kodu Blower Tipi Voltaj
V		 Motor Ömrü Hava Akış Debisi
m³/h		 Hız Ölçü
inch/mm		 PDF NOT
6401565 Çiftli Blower 12VDC Standart (Std.) 900 1 (14x6,64x5,5)
350x168,5x140
6401790 Çiftli Blower 12VDC Standart (Std.) 900 3 (14x6,64x5,5)
350x168,5x140
6401765 Çiftli Blower 12VDC Standart (Std.) 900 4 (14x6,64x5,5)
350x168,5x140
6401564 Çiftli Blower 12VDC Standart (Std.) 1000 1 (14x6,64x5,5)
350x168,5x140
6401590 Çiftli Blower 12VDC Standart (Std.) 1000 3 (14x6,64x5,5)
350x168,5x140
6401769 Çiftli Blower 12VDC Standart (Std.) 1200 4 (14x6,64x5,5)
350x168,5x140
6401767 Çiftli Blower 12VDC Standart (Std.) 1000 4 (14x6,64x5,5)
350x168,5x140
6401563 Çiftli Blower 12VDC Standart (Std.) 1200 1 (14x6,64x5,5)
350x168,5x140
6401782 Çiftli Blower 12VDC Standart (Std.) 1200 3 (14x6,64x5,5)
350x168,5x140
6401560 2x Tekli Blower 12VDC Standart (Std.) 650 1 (12,2x5,8x5)
310x147x129
6401539 2x Tekli Blower 12VDC Standart (Std.) 650 3 (12,2x5,8x5)
310x147x129
6401816 2x Tekli Blower 12VDC Standart (Std.) 650 1 (12,2x5,8x5)
310x147x129
6401818 2x Tekli Blower 12VDC Standart (Std.) 650 3 (12,2x5,8x5)
310x147x129
6401820 2x Tekli Blower 12VDC Standart (Std.) 750 1 (12,2x5,8x5)
310x147x129
6401822 2x Tekli Blower 12VDC Standart (Std.) 750 3 (12,2x5,8x5)
310x147x129
6401559 2x Tekli Blower 12VDC Standart (Std.) 750 1 (12,2x5,8x5)
310x147x129
6401775 2x Tekli Blower 12VDC Standart (Std.) 750 3 (12,2x5,8x5)
310x147x129
6401773 2x Tekli Blower 12VDC Standart (Std.) 850 1 (12,2x5,8x5)
310x147x129
6401570 2x Tekli Blower 12VDC Standart (Std.) 850 3 (12,2x5,8x5)
310x147x129
6401771 2x Tekli Blower 12VDC Standart (Std.) 800 1 (12,5x6,2x5,3)
318x157x134
6401720 2x Tekli Blower 12VDC Standart (Std.) 800 3 (12,5x6,2x5,3)
318x157x134
6401557 2x Tekli Blower 12VDC Standart (Std.) 850 1 (12,8x6,7x5,6)
325x170,8x142,2
6401543 2x Tekli Blower 12VDC Standart (Std.) 850 3 (12,8x6,7x5,6)
325x170,8x142,2
6401555 2x Tekli Blower 12VDC Standart (Std.) 1000 1 (13,2x6,7x5,6)
335x170,8x142,2
6401724 2x Tekli Blower 12VDC Standart (Std.) 1000 3 (13,2x6,7x5,6)
335x170,8x142,2
6401812 Tekli Blower 12VDC Standart (Std.) 260 1 (4,5x5,1x4,5)
114x129x114,5
6401814 Tekli Blower 12VDC Standart (Std.) 260 3 (4,5x5,1x4,5)
114x129x114,5
6401535 Tekli Blower 12VDC Standart (Std.) 350 1 (5x5,8x5)
128x147x129
6401533 Tekli Blower 12VDC Standart (Std.) 350 3 (5x5,8x5)
128x147x129
6401792 Tekli Blower 12VDC Standart (Std.) 400 1 (5,3x6,2x5,3)
134x157x134
6401596 Tekli Blower 12VDC Standart (Std.) 400 3 (5,3x6,2x5,3)
134x157x134
6401729 Tekli Blower 12VDC Standart (Std.) 500 1 (5,6x6,7x5,6)
142x170,8x142,2
6401553 Tekli Blower 12VDC Standart (Std.) 500 3 (5,6x6,7x5,6)
142x170,8x142,2
6401548 Tekli Blower 12VDC Standart (Std.) 550 1 (8,7x4x8,7)
222x102,6x221,9
6401550 Tekli Blower 12VDC Standart (Std.) 550 1 (8,7x4x8,7)
222x102,6x221,9
6401554 Tekli Blower 12VDC Standart (Std.) 550 3 (8,7x4x8,7)
222x102,6x221,9
6401759 Tekli Blower 12VDC Standart (Std.) 550 1 (4,5x5,1x4,5)
114x129x114,5
6401794 Tekli Blower 12VDC Standart (Std.) 550 1 (4,5x5,1x4,5)
114x129x114,5
6401569 Tekli Blower 12VDC Standart (Std.) 550 1 (8x5,7x8)
203x144x202,8
6401568 Çiftli Blower 24VDC Standart (Std.) 900 1 (14x6,64x5,5)
350x168,5x140
6401791 Çiftli Blower 24VDC Standart (Std.) 900 3 (14x6,64x5,5)
350x168,5x140
6401591 Çiftli Blower 24VDC Standart (Std.) 1000 3 (14x6,64x5,5)
350x168,5x140
6401768 Çiftli Blower 24VDC Standart (Std.) 1000 4 (14x6,64x5,5)
350x168,5x140
6401566 Çiftli Blower 24VDC Standart (Std.) 1200 1 (14x6,64x5,5)
350x168,5x140
6401783 Çiftli Blower 24VDC Standart (Std.) 1200 3 (14x6,64x5,5)
350x168,5x140
6401770 Çiftli Blower 24VDC Standart (Std.) 1200 4 (14x6,64x5,5)
350x168,5x140
6401562 2x Tekli Blower 24VDC Standart (Std.) 650 1 (12,2x5,8x5)
310x147x129
6401540 2x Tekli Blower 24VDC Standart (Std.) 650 3 (12,2x5,8x5)
310x147x129
6401817 2x Tekli Blower 24VDC Standart (Std.) 650 1 (12,2x5,8x5)
310x147x129
6401819 2x Tekli Blower 24VDC Standart (Std.) 650 3 (12,2x5,8x5)
310x147x129
6401821 2x Tekli Blower 24VDC Standart (Std.) 750 1 (12,2x5,8x5)
310x147x129
6401823 2x Tekli Blower 24VDC Standart (Std.) 750 3 (12,2x5,8x5)
310x147x129
6401561 2x Tekli Blower 24VDC Standart (Std.) 750 1 (12,2x5,8x5)
310x147x129
6401776 2x Tekli Blower 24VDC Standart (Std.) 750 3 (12,2x5,8x5)
310x147x129
6401774 2x Tekli Blower 24VDC Standart (Std.) 850 1 (12,2x5,8x5)
310x147x129
6401772 2x Tekli Blower 24VDC Standart (Std.) 800 1 (12,5x6,2x5,3)
318x157x134
6401721 2x Tekli Blower 24VDC Standart (Std.) 800 3 (12,5x6,2x5,3)
318x157x134
6401544 2x Tekli Blower 24VDC Standart (Std.) 850 3 (12,8x6,7x5,6)
325x170,8x142,2
6401556 2x Tekli Blower 24VDC Standart (Std.) 1000 1 (13,2x6,7x5,6)
335x170,8x142,2
6401813 Tekli Blower 24VDC Standart (Std.) 260 1 (4,5x5,1x4,5)
114x129x114,5
6401534 Tekli Blower 24VDC Standart (Std.) 350 3 (5x5,8x5)
128x147x129
6401793 Tekli Blower 24VDC Standart (Std.) 400 1 (5,3x6,2x5,3)
134x157x134
6401597 Tekli Blower 24VDC Standart (Std.) 400 3 (5,3x6,2x5,3)
134x157x134
6401511 Tekli Blower 24VDC Standart (Std.) 500 1 (5,6x6,7x5,6)
142x170,8x142,2
6401716 Tekli Blower 24VDC Standart (Std.) 500 3 (5,6x6,7x5,6)
142x170,8x142,2
6401549 Tekli Blower 24VDC Standart (Std.) 550 1 (8,7x4x8,7)
222x102,6x221,9
6401551 Tekli Blower 24VDC Standart (Std.) 550 1 (8,7x4x8,7)
222x102,6x221,9
6401750 Tekli Blower 24VDC Standart (Std.) 550 3 (8,7x4x8,7)
222x102,6x221,9
6401760 Tekli Blower 24VDC Standart (Std.) 550 1 (4,5x5,1x4,5)
114x129x114,5
6401795 Tekli Blower 24VDC Standart (Std.) 550 1 (4,5x5,1x4,5)
114x129x114,5
6401521 Tekli Blower 24VDC Standart (Std.) 550 1 (8x5,7x8)
203x144x202,8
6401536 Tekli Blower 24VDC Standart (Std.) 350 1 (5x5,8x5)
128x147x129
6401815 Tekli Blower 24VDC Standart (Std.) 260 3 (4,5x5,1x4,5)
114x129x114,5
6401725 2x Tekli Blower 24VDC Standart (Std.) 1000 3 (13,2x6,7x5,6)
335x170,8x142,2
6401558 2x Tekli Blower 24VDC Standart (Std.) 850 1 (12,8x6,7x5,6)
325x170,8x142,2
6401571 2x Tekli Blower 24VDC Standart (Std.) 850 3 (12,2x5,8x5)
310x147x129
6401567 Çiftli Blower 24VDC Standart (Std.) 1000 1 (14x6,64x5,5)
350x168,5x140
6401766 Çiftli Blower 24VDC Standart (Std.) 900 4 (14x6,64x5,5)
350x168,5x140
6401110 Tekli Blower 12VDC Standart (Std.) 550 1 (5x5,8x5)
128x147x129
